Supplied Product

Please ensure that you have recieved the following, per ARC™ system:

  • 1x ARC Primary (ARC-P120)
  • 3x ARC Secondaries (ARC-S120)

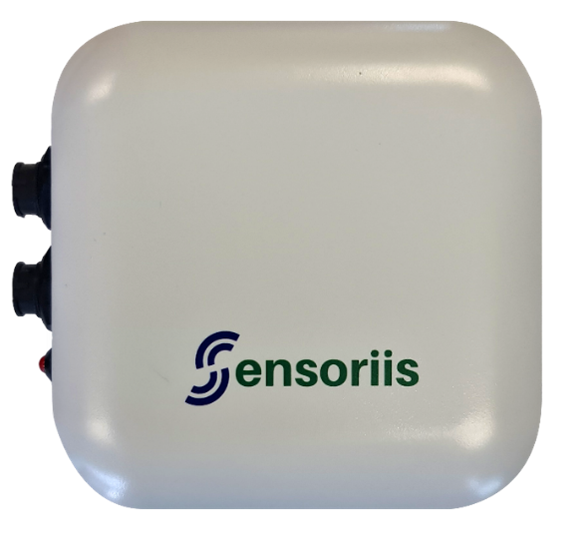

ARC Primary / ARC Secondary enclosure

Figure 1: ARC Primary / ARC Secondary enclosure

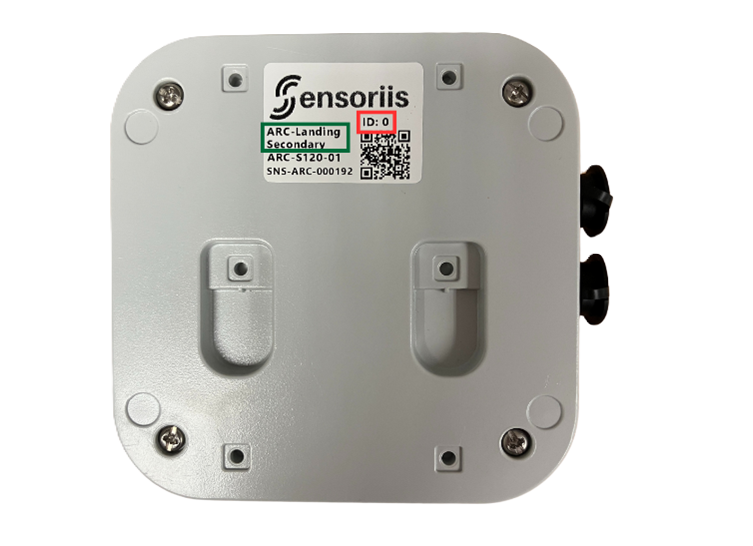

Each ARC landing device has a product label on the rear of the enclosure (see Figure2) that displays the following:

  • Product Type: Indicates if the device is an ARC Primary or ARC Secondary

  • Product Part No Identifies the product hardware revision

  • Device Serial Number: Unique identifier for the device

  • Secondary ID (ARC Secondary only): Unique factory coded ID (0, 1, ..., N), used to identify the ARC Secondary device within a set of ARC Secondary devices.

ARC Landing device product label. Green: ARC device product type; Red: Device ID (for ARC Secondaries)

Figure 2: ARC Landing device product label. Green: ARC device product type; Red: Device ID (for ARC Secondaries).

You should have also recieved the following:

Part No. Item Qty Illustration
AC11009 USB Config Cable 1x per ARC Primary ARC USB Config Cable
Figure 3: ARC USB Config Cable - Provides power and data connection to programming/configuration interface of ARC Primary via USB Type A connector.
AC11008 USB Data Cable 1x per ARC Primary ARC External FTDI Cable
Figure 4: ARC External FTDI Cable - Provides power and data connection to ARC Primary via USB Type A connector.
AC11007 Unterminated Data Cable 1x per ARC Primary ARC External Data Cable
Figure 5: ARC External Data Cable - Provides power and data connection to ARC Primary to bare leads.
AC11004 Unterminated Power Cable 1x per ARC Unit ARC External Power Cable
Figure 6: ARC External Power Cable - Provides power supply to ARC Secondary to bare leads.
